EV Charger Modular PCS SI3P
PCS Series

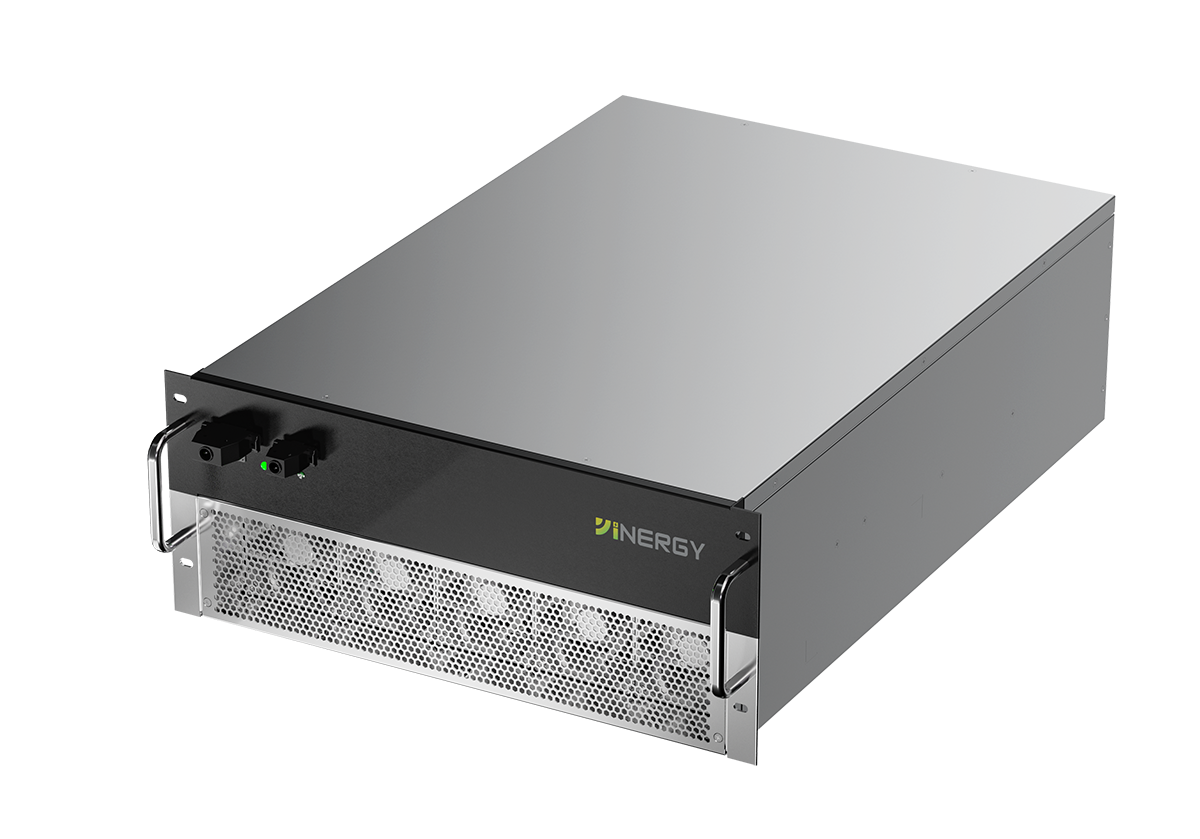

Modular PCS
Modular Design | 100KW

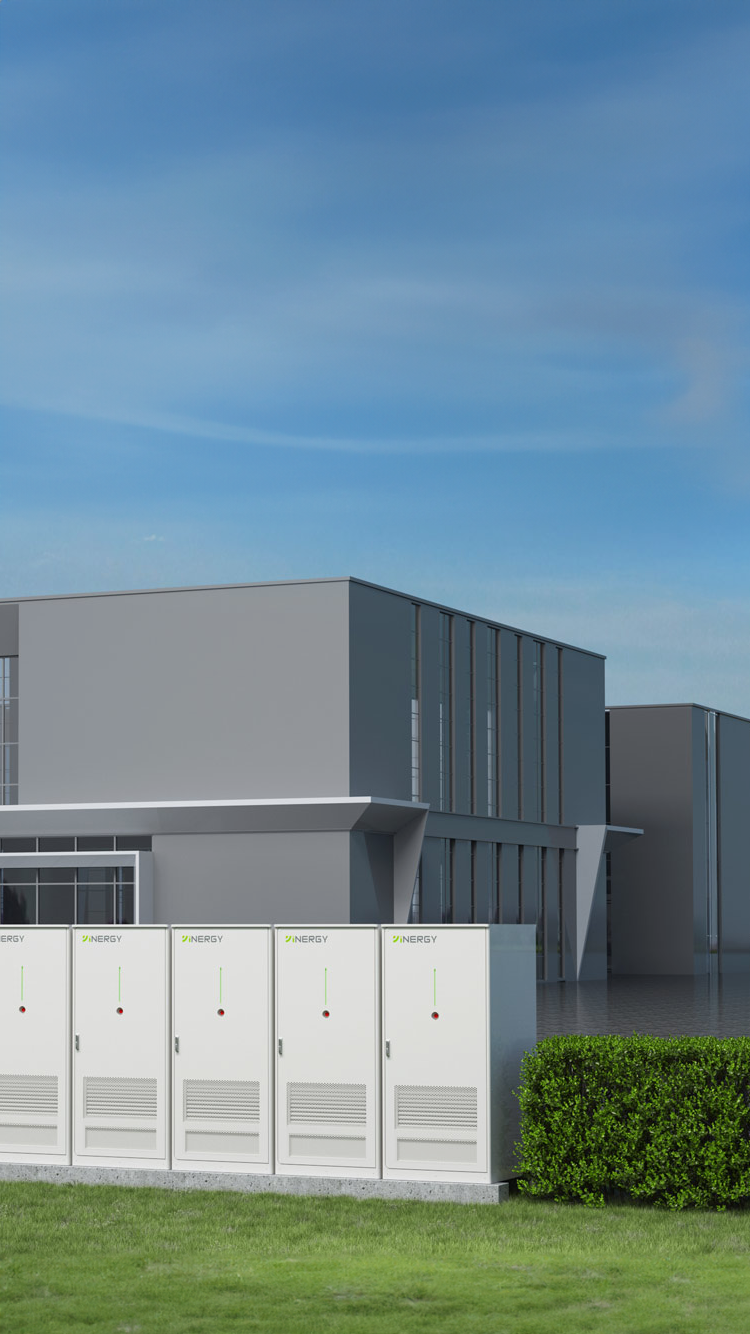

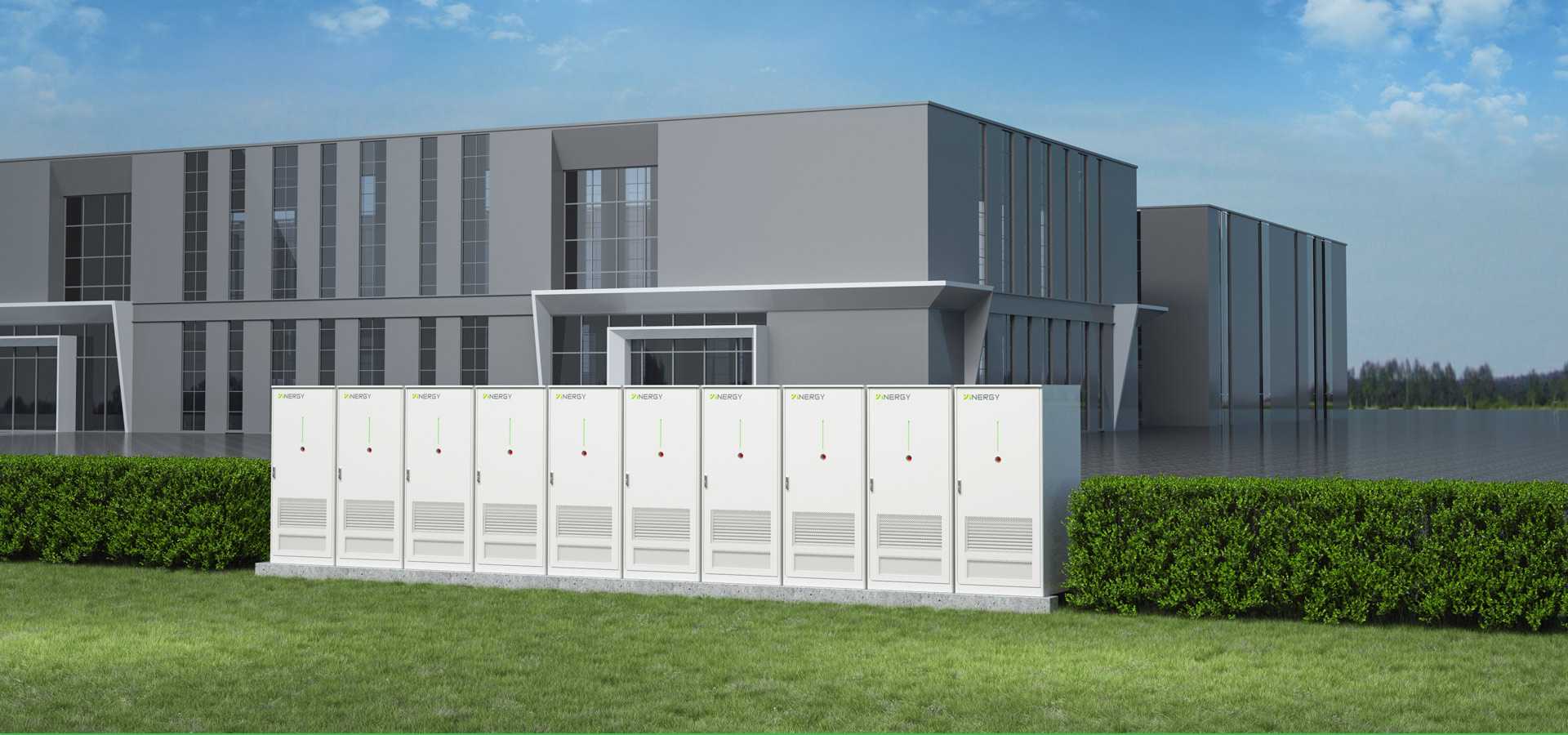

Smart Energy Management
For Every Business

The Power Conversion System (PCS) efficiently connects battery banks to the grid or loads, enabling bidirectional energy conversion. It converts DC from batteries to AC for grid or load use and AC from the grid to DC for battery charging. Equipped with a DC/AC bidirectional converter and control unit, the PCS regulates active and reactive power based on backend commands. It communicates with the Battery Management System (BMS) via CAN interface, ensuring safe and protective charging and discharging, thereby enhancing overall system reliability and safety.

110%
Support 110% overload long-term operation

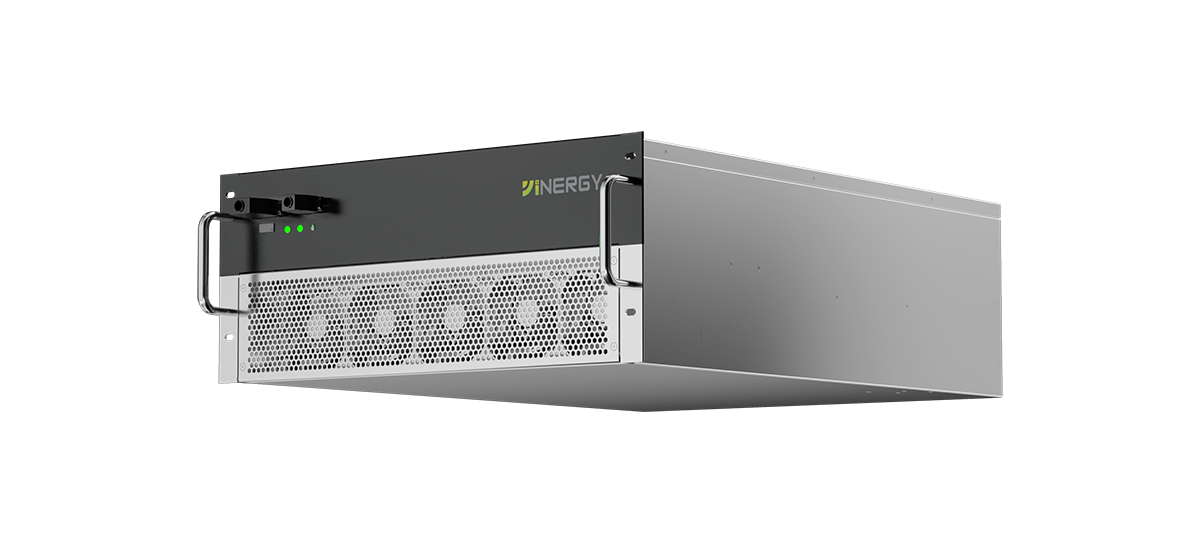

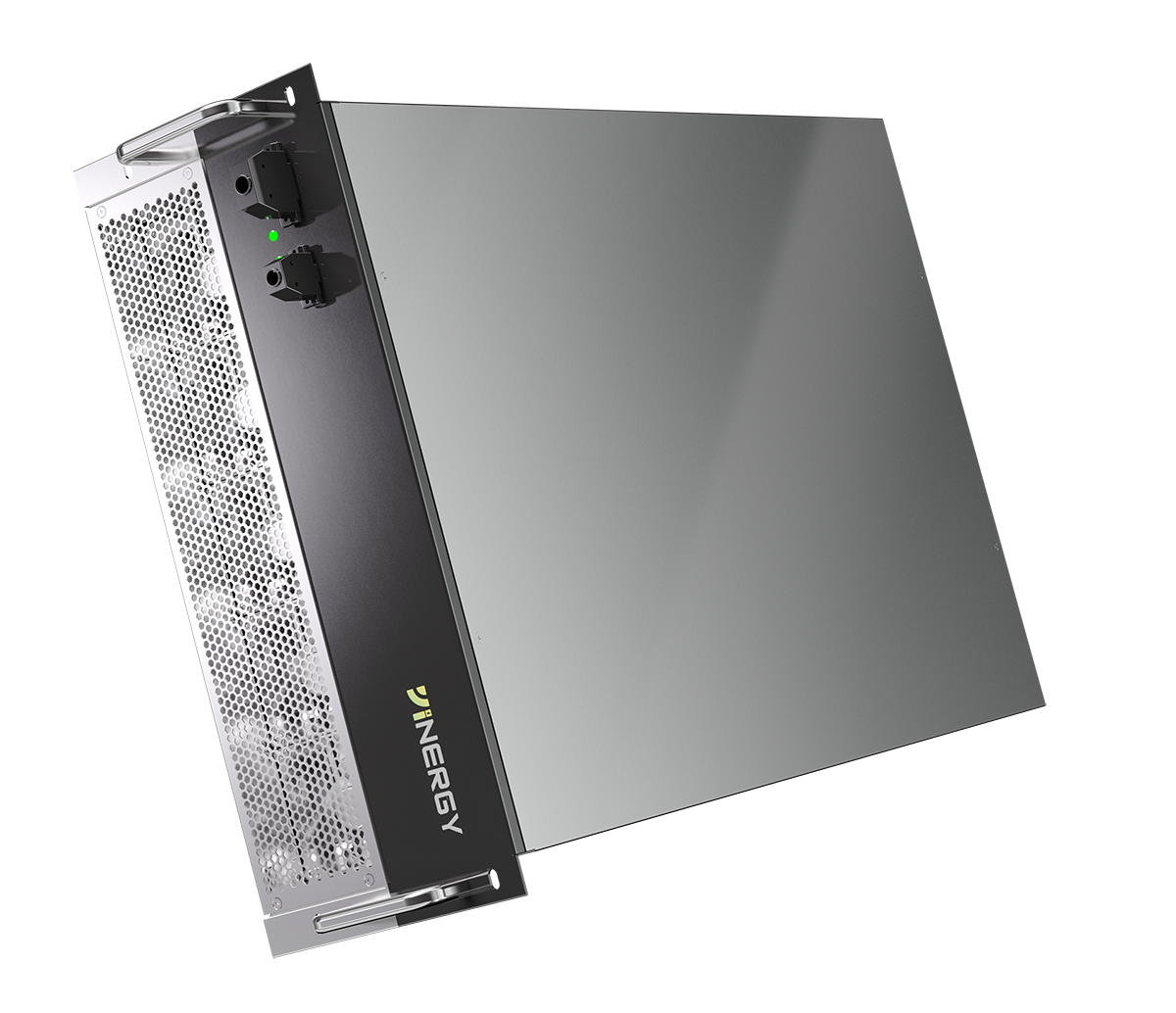

Horizontall / Vertical
supports horizontall / vertical installation, adapts to a variety of cabinets
Advantages
110%
Support 110% overload long-term operation
Weak Grid Optimization
Efficient harmonic suppression algorithm to use in weak grid
Multiple Charging Strategies
Supports multiple charging strategies: constant voltage, constant current, and constant powe
>98%
Three-level + adaptive control, efficiency >98%
Plug and Play
Modular design, plug and play
Scenario Flexibility
Supports the AC parallel operation of multiple devices, adapts to a variety of scenarios
Easy Maintenance
Independent fan module, easy maintenance
Parameters
PCS Series
Modular PCS
PCS-100KM-L-Y1
PCS-100KM-L-Y1
Rated AC Power
100 kW
AC Grid Connection Type
3W / PE
Overload Capability
110 kW
AC Voltage
400 Vac(-15%~+15%)
Maximum DCPower
110 kW
DC Voltage Range
620~900 V
Maximum DC Current
178 A
No. of DC Input
1
Maximum Efficiency
>98%
Dimension (W*H*D)
500 x 220 x 725 mm
Weight
58 Kg
Cooling Method
Smart fan cooling
