HI1P SERIES AC0 EV Charger BPHY SERIES Stick Logger YiCloud
3-6 kW

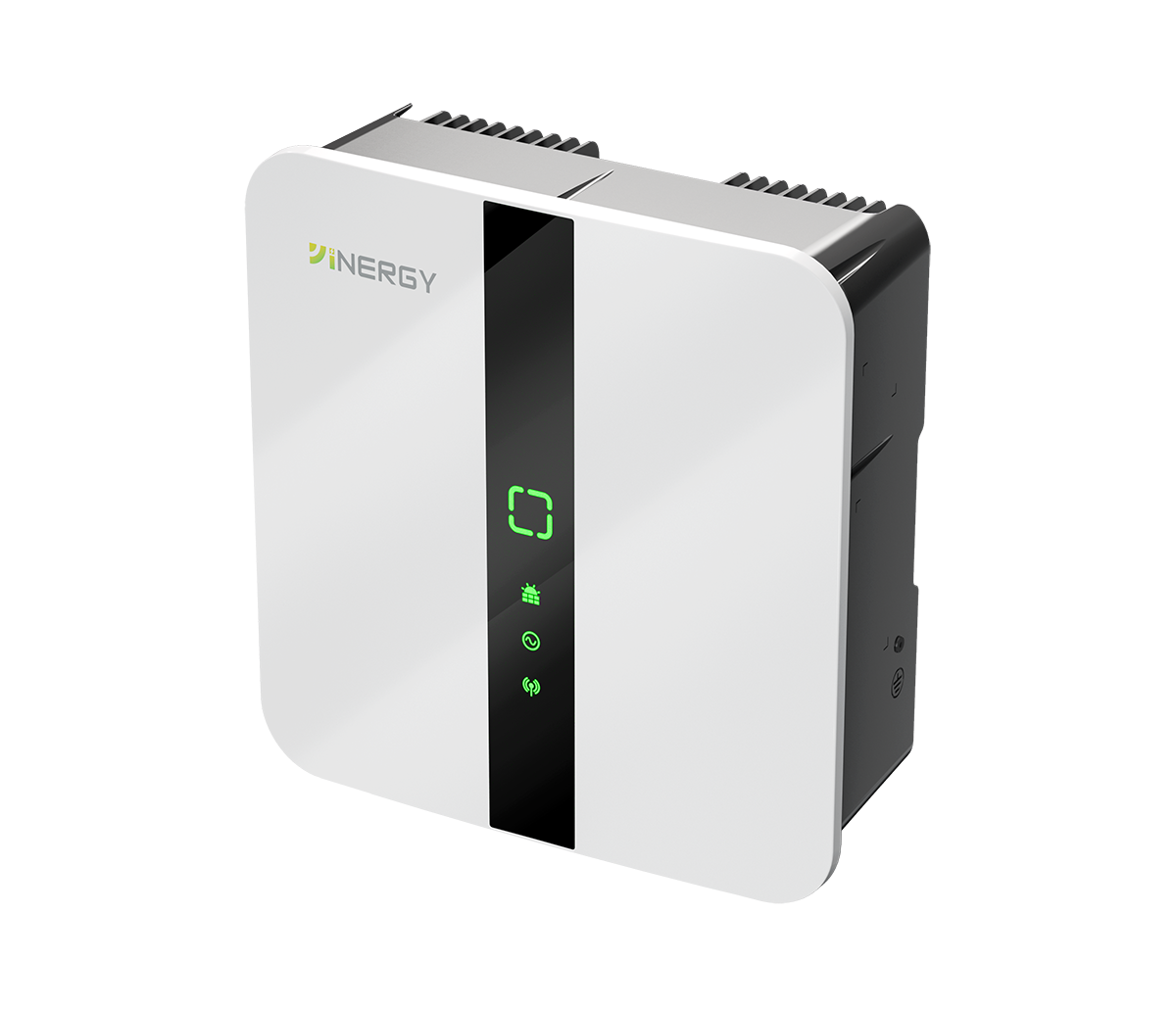

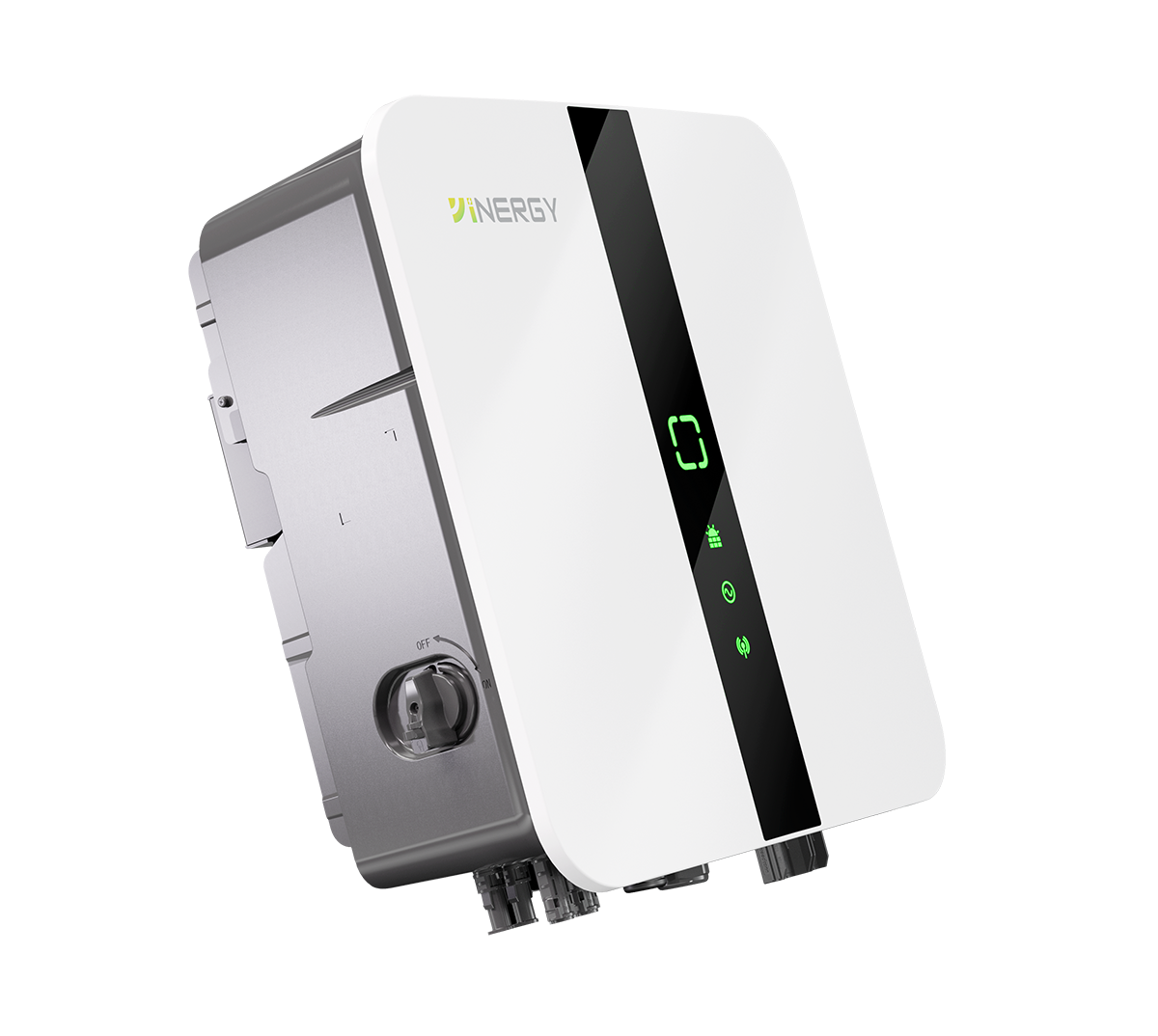

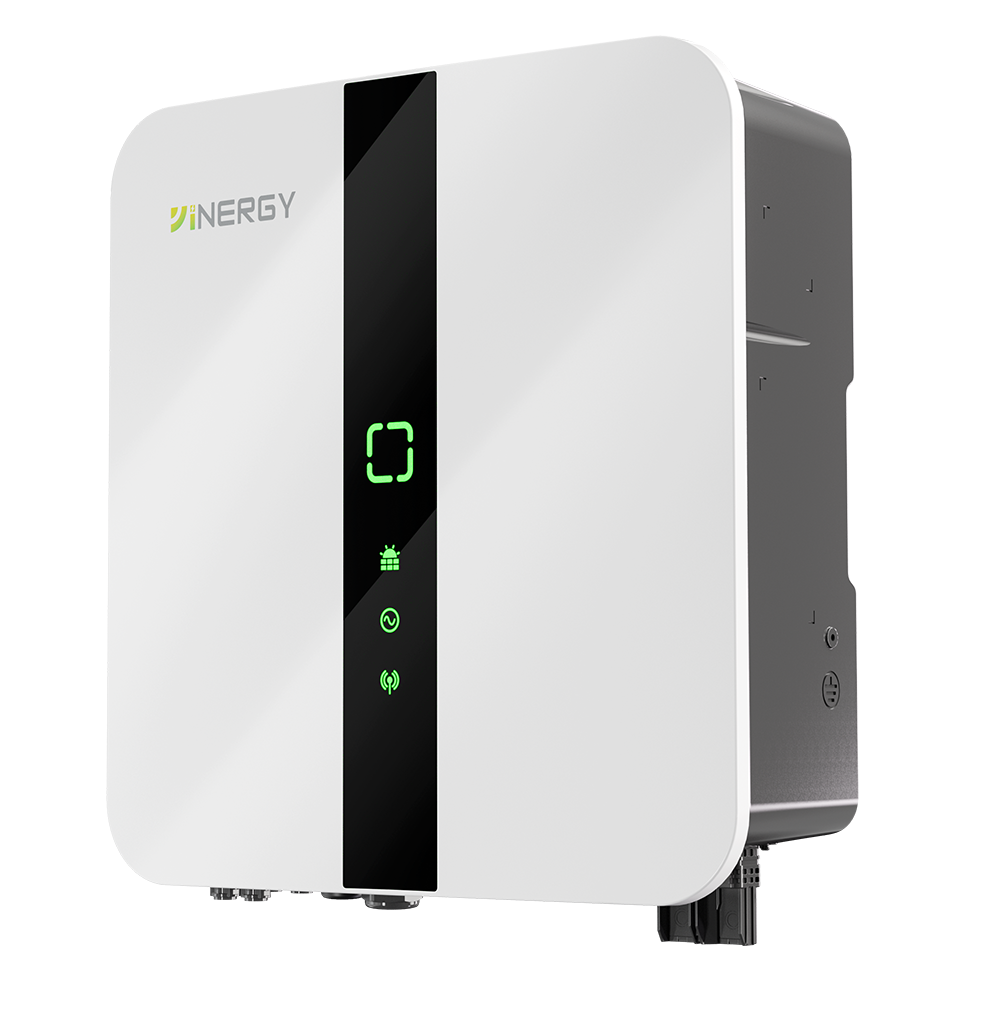

Single-phase Hybrid Inverter
3-6kW | Single Phase | 2 MPPTs | LV
Smart Energy Made Simple

The Single-phase inverter is meticulously crafted to provide residential spaces with unparalleled efficiency, comfort, and quiet operation. Available in capacities ranging from 3 kW to 6 kW, its standout feature lies in it 3rd generation semiconductor technology, ensuring effortless invert. Noteworthy for its intelligent and compatibility, guaranteeing optimal performance, where efficiency meets innovation for a brighter, greener tomorrow.

120 A
Max. charging / discharging current
200%
PV oversized
Advantages
125A
Up to 125 A continuous charge and discharge current
High Compatibility
Compatible with top brand batterys such as Pylontech, Sunwoda, etc
Easy Installation
Save 40% Installation Time
＜4ms
UPS level switching time
IP66
High degree of protection against harsh environments
150%
DC/AC ratio up to 150%
Max.10 in Parallel
Support up to 4 units in parallel on grid port
User-friendly
One Platform Easy Control
Reliable
10 Years Warranty
Leading Brand of Components
Parameters
3-6 kW
Single-phase Hybrid Inverter
HI-1P6K -L-Y1
HI-1P6K -L-Y1
HI-1P5K -L-Y1
HI-1P4.6K -L-Y1
HI-1P4K -L-Y1
HI-1P3.68K -L-Y1
HI-1P3K -L-Y1
Max. PV Array Power
12000 W
Max. Available PV Power
9000 W
Max. Input Voltage
550 V
Rated Input Voltage
360 V
Start-up Input Voltage
90 V
MPPT Operating Voltage Range
90 V~520 V
Max. Input Current
16 A
Max. Short-circuit Current
23 A
No. of MPP Trackers
2
Battery Voltage Range
40～60 V
Max. Charge / Discharge Current
125 A
Rated Power
6000 W
Dimensions (W x H x D)
Max. PV Array Power
10000 W
Max. Available PV Power
7500 W
Max. Input Voltage
550 V
Rated Input Voltage
360 V
Start-up Input Voltage
90 V
MPPT Operating Voltage Range
90 V~520 V
Max. Input Current
16 A
Max. Short-circuit Current
23 A
No. of MPP Trackers
2
Battery Voltage Range
40～60 V
Max. Charge / Discharge Current
125 A
Rated Power
5000 W
Dimensions (W x H x D)
482 x 461 x 208 mm
Max. PV Array Power
7000 W
Max. Available PV Power
7000 W
Max. Input Voltage
550 V
Rated Input Voltage
360 V
Start-up Input Voltage
90 V
MPPT Operating Voltage Range
90 V~520 V
Max. Input Current
16 A
Max. Short-circuit Current
23 A
No. of MPP Trackers
2
Battery Voltage Range
40～60 V
Max. Charge / Discharge Current
100 A
Rated Power
4600 W
Dimensions (W x H x D)
482 x 461 x 208 mm
Max. PV Array Power
8000 W
Max. Available PV Power
6000 W
Max. Input Voltage
550 V
Rated Input Voltage
360 V
Start-up Input Voltage
90 V
MPPT Operating Voltage Range
90 V~520 V
Max. Input Current
16 A
Max. Short-circuit Current
23 A
No. of MPP Trackers
2
Battery Voltage Range
40～60 V
Max. Charge / Discharge Current
100 A
Rated Power
4000 W
Dimensions (W x H x D)
482 x 461 x 208 mm
Max. PV Array Power
5500 W
Max. Available PV Power
5500 W
Max. Input Voltage
550 V
Rated Input Voltage
360 V
Start-up Input Voltage
90 V
MPPT Operating Voltage Range
90 V~520 V
Max. Input Current
16 A
Max. Short-circuit Current
23 A
No. of MPP Trackers
2
Battery Voltage Range
40 ~ 60 V
Max. Charge / Discharge Current
75 A
Rated Power
3680 W
Dimensions (W x H x D)
482 x 461 x 208 mm
Max. PV Array Power
6000 W
Max. Available PV Power
4500 W
Max. Input Voltage
550 V
Rated Input Voltage
360 V
Start-up Input Voltage
90 V
MPPT Operating Voltage Range
90 V~520 V
Max. Input Current
16 A
Max. Short-circuit Current
23 A
No. of MPP Trackers
1
Battery Voltage Range
40～60 V
Max. Charge / Discharge Current
75 A
Rated Power
3000 W
Dimensions (W x H x D)
482 x 461 x 208 mm
