10-15kWh

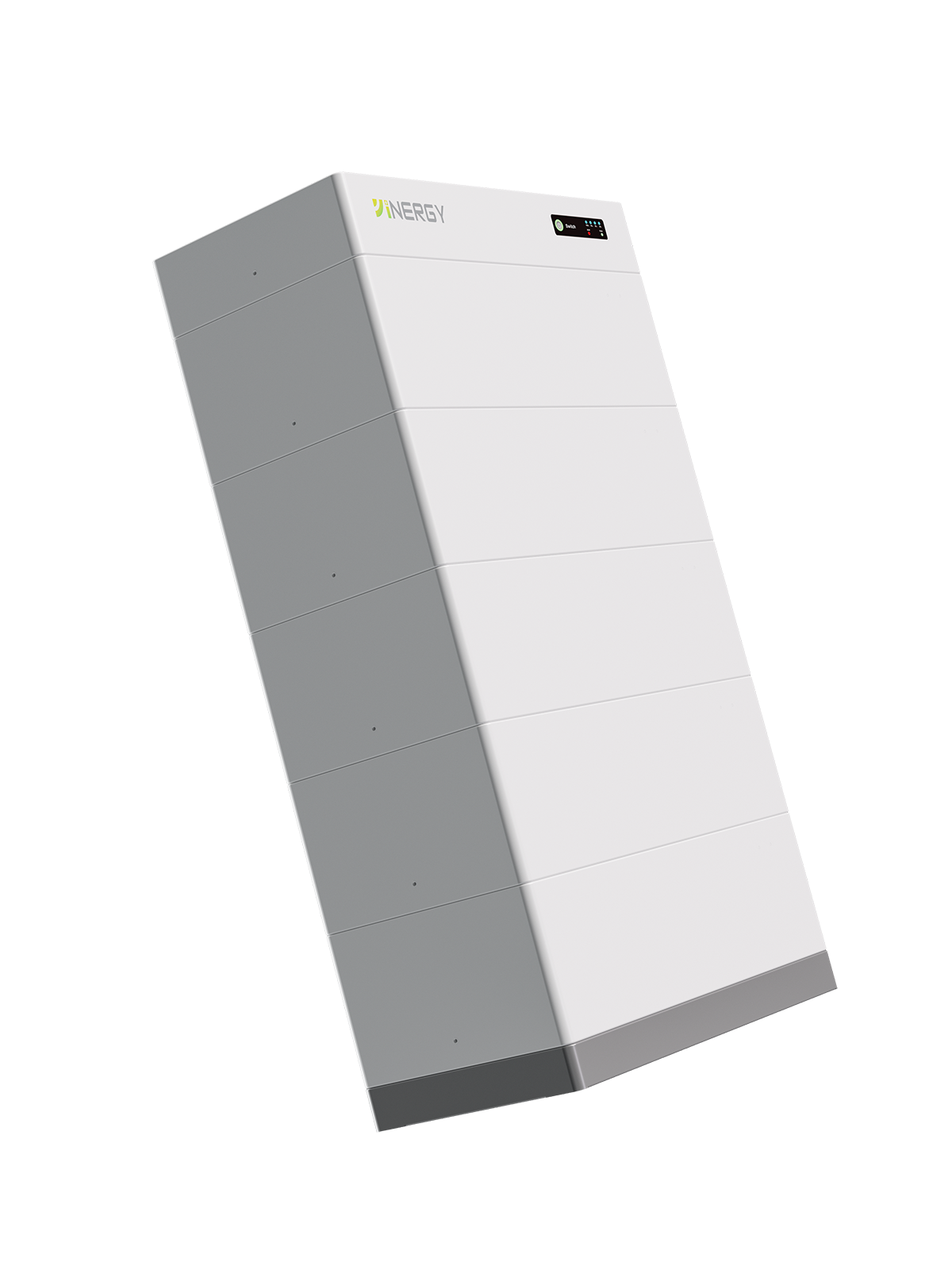

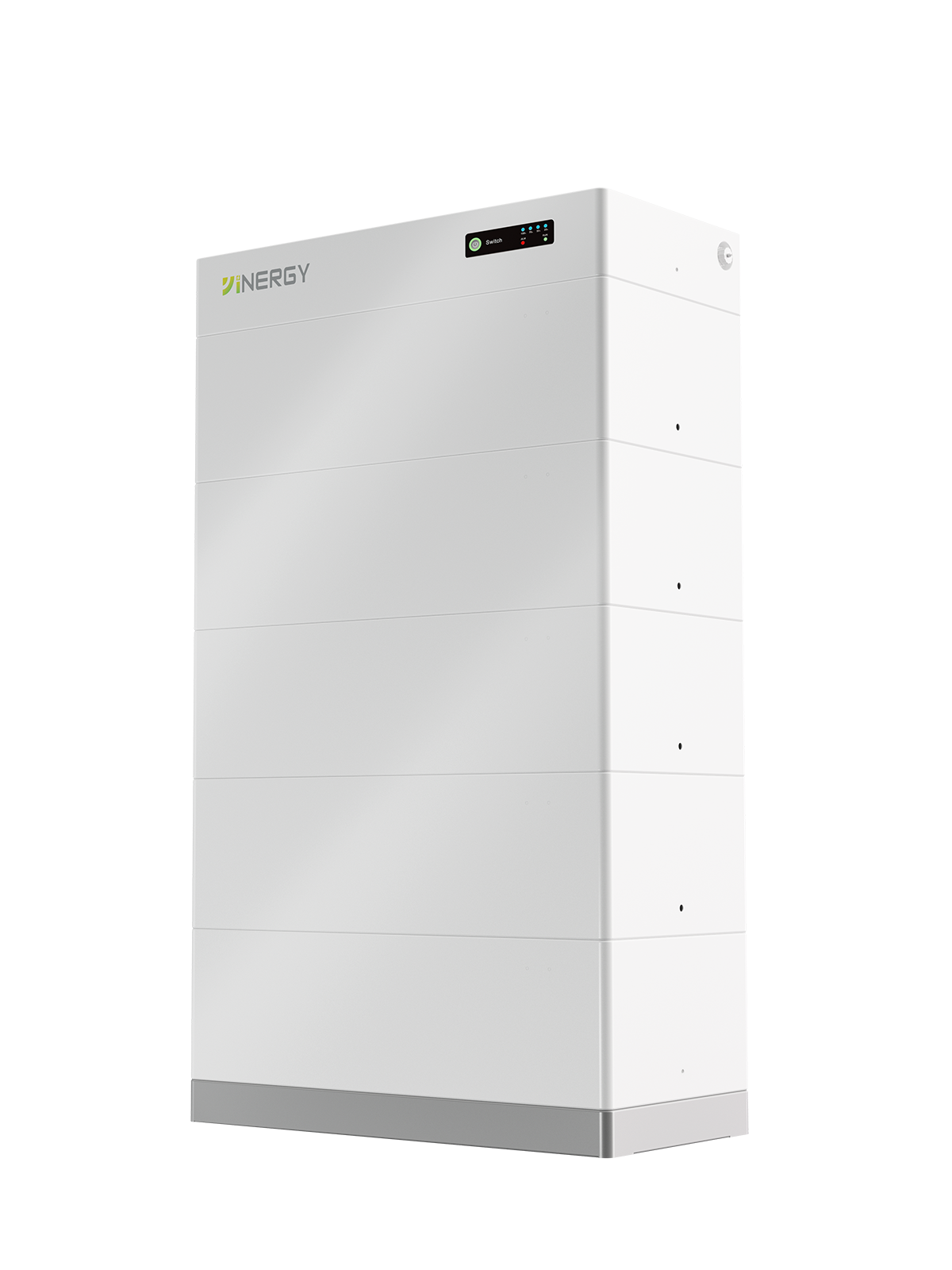

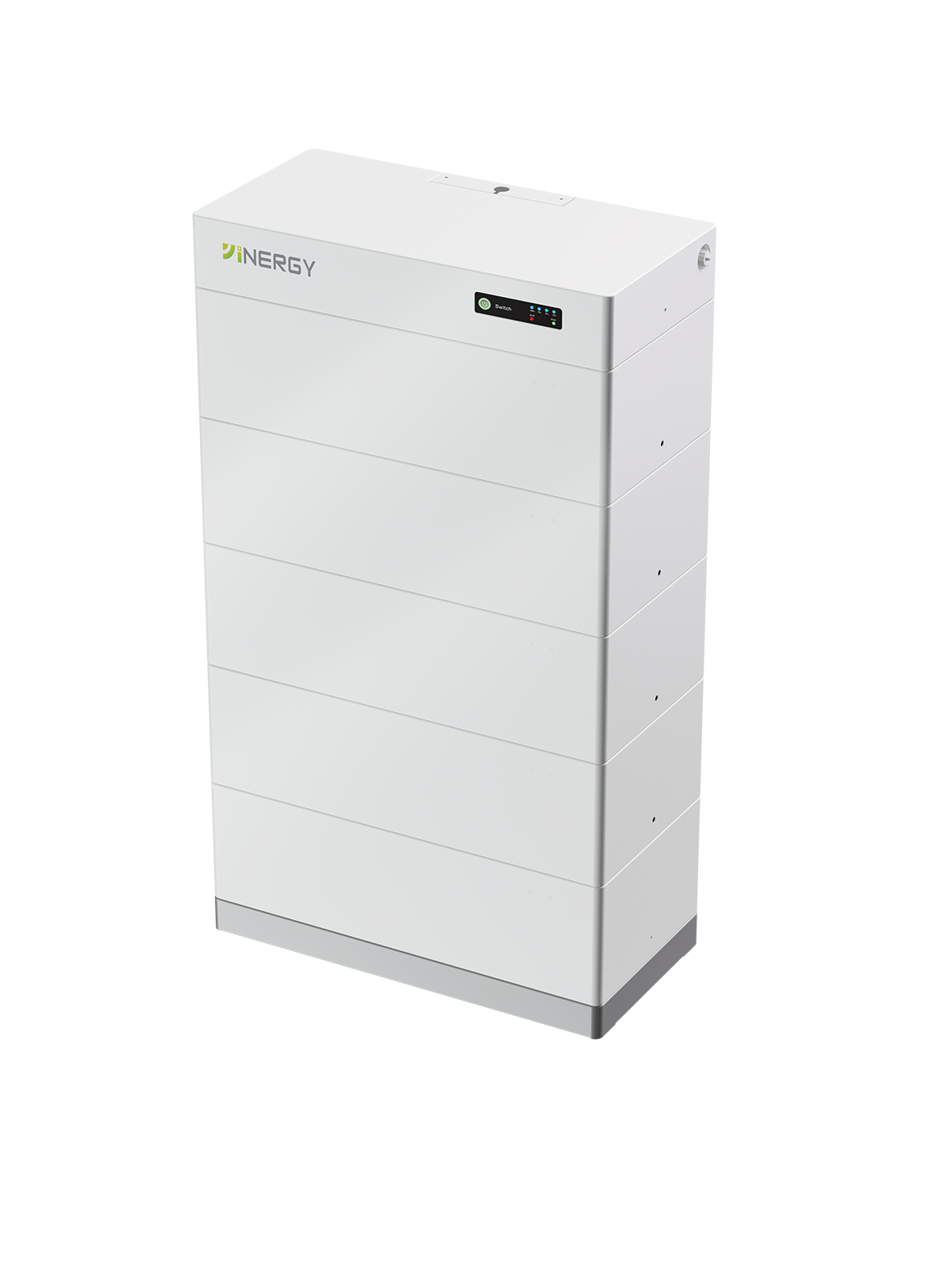

High Voltage Battery

Stacked Design

Flexible, Scalable

Expansion up to 26.5kWh as required. Increase your energy self-sufficiency with greater flexibility and a lower investment. Industrial-grade Cobalt Free Lithium lron Phosphate (LFP) Battery, safety and long lifespan, high efficiency and high-power density.

Eco-Friendly

Non-Toxic, Pollution Free

LFP Battery

Safe and Long Lifespan

Advantages

Safer

Cobalt Free Lithium lron Phosphate (LFP) Battery, safety and long lifespan. Intelligent BMS, providing complete protection.

Reliable

Support high discharge power, module level Auto-balancing, under-voltage Automatic Restart.

Flexible

Modular design, easy to expand, Max. capacity of 26.5kWh. Suited to residential and commercial applications for increasing the selfconsumption ratio.

Convenient

Battery module auto networking, Automatic IP addressing, easy maintenance, remotely monitoring and upgrade, support USB drive upgrade the firmware.

Eco-Friendly

Use environmental protection materials, the whole module non-toxic, pollution-free.

Floor-Mounted

Free stand design, floor-mounted, saving installation space.

Parameters

10-15kWh

High Voltage Battery

BP-15.9H-Y1

BP-15.9H-Y1

BP-10.6H-Y1

Total Energy

15.9 kWh

Number of Modules

3

Nominal Voltage

307.2 V

Operating Voltage

240 V - 350.4 V

Max . Charge / Discharge Current

50 A

Continue Discharge Output

15 kW

Dimension [W*D*H]

740 * 220 * 1235mm

Approximate Weight

166 KG

IP Rating of Enclosure

IP65

Total Energy

10.6 kWh

Number of Modules

2

Nominal Voltage

204.8 V

Operating Voltage

160 V - 233.6 V

Max . Charge / Discharge Current

50 A

Continue Discharge Output

10 kW

Dimension [W*D*H]

740 * 220 *900mm

Approximate Weight

116 KG

IP Rating of Enclosure

IP 65
