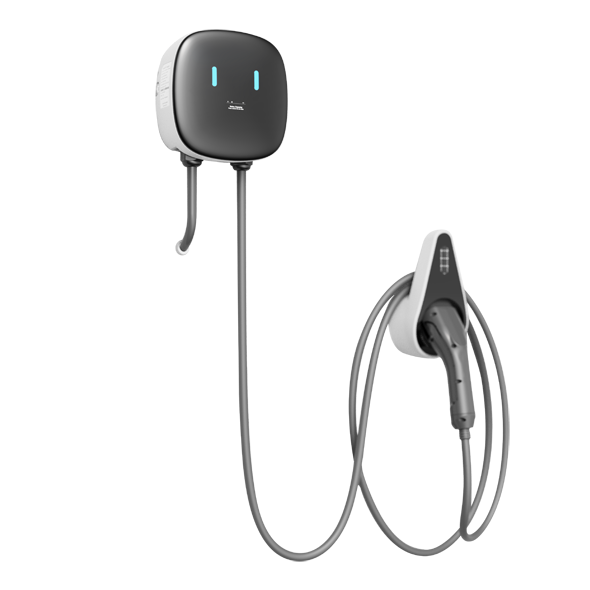

AC0
EV Charger
AC 240V | 400V | 7kW | 11kW | 22kW
Swift Power
Effortless Journey

AC0 EV Charger is leading the charge in revolutionizing the electric vehicle (EV) charging landscape, offering cutting-edge solutions to meet the surging demand for sustainable transportation. With its advanced features and robust performance, AC0 Smart EV Charger is paving the way for a cleaner and greener future.

<5W
Less than 5W Stand By Power Consumption
Enhanced Safety
AC30mA + DC6mA RCD
Advantages
Special Design
5.8G Radar Courtesy light
Multi-Protection
Anti-Error Wire Connect Protection
OVP/LVP/OCP/OTP/SPD Protection
PEN Protection
Safe
Wire terminal temperature detection
Simple Operation
Remote OTA & Near-end Bluetooth OTA
Easy Maintenance
Bluetooth bridge 4G remote operation and maintenance
Integrated Intelligence
App/RFID authentication
OCPP compliance
Low Standby Power Consumption
Less than 5W Standby Power
65℃
Meet the 65℃ high temperature scenario
Multi-Charging
DLB function in multi-charging pile scenario
Various Scenario
Compatible to Community, office bullding commercial complex etc
Parameters
AC0
EV Charger
AJEU-AC31-22KCH-L
AJEU-AC31-22KCH-L
AJEU-AC31-11KCH-L
AJEU-AC11-7KCH-L
AC input
400Vac Max.32A three phases
Input connection
L1/L2/L3/N/PE
AC output
22KW@32A (Max)
Display
LCD
User authentication
RFID/QR code/APP
Communication
Wifi+Bluetooth +Ethernet(optional)+RS485(Customized)+CAN(Customized)
Protocol
OCPP1.6J basic
Dimensions H×W×D
200mm*200mm*100mm
Net Weight
3KG
Operating Temperature
-30℃~+50℃
Humidity
≤85% RH
IP and IK rating
IP54
RCD
AC30mA+dc6mA
Input line
Surge protection,OVP/UVP,ground fault protection, Anti-error wire connection protection, Wire terminal temperature detection
Output line
CP fault,MCU fault detection,OCP/OTP/,Residual current protection, PEN(optional),Relay welding detection
Safety standards
IEC61851,IEC62196,IEC61000-6,IEC62955
Certification
CE,UKCA Pending
Solar compatiable
No
AC input
400Vac Max.16A three phases
Input connection
L1/L2/L3/N/PE
AC output
11KW@16A (Max)
Display
LCD
User authentication
RFID/QR code/APP
Communication
Wifi+Bluetooth +Ethernet(optional)+RS485(Customized)+CAN(Customized)
Protocol
OCPP1.6J basic
Dimensions H×W×D
200mm*200mm*100mm
Net Weight
3kg
Operating Temperature
-30℃~+50℃
Humidity
≤85% RH
IP and IK rating
IP54
RCD
AC30mA+dc6mA
Input line
Surge protection,OVP/UVP,ground fault protection, Anti-error wire connection protection, Wire terminal temperature detection
Output line
CP fault,MCU fault detection,OCP/OTP/,Residual current protection, PEN(optional),Relay welding detection
Safety standards
IEC61851,IEC62196,IEC61000-6,IEC62955
Certification
CE,UKCA Pending
AC input
240Vac Max.32A single phases
Input connection
L/N/PE
AC output
7KW@32A(Max)
Display
LCD
User authentication
RFID/QR code/APP
Communication
Wifi+Bluetooth +Ethernet(optional)
Dimensions H×W×D
200mm*200mm*100mm
Net Weight
3 kg
Charging interface
IEC62196-2(Type2) Cable 5m
Protocol
OCPP1.6J basic
Operating Temperature
-30℃~+50℃
Humidity
≤85% RH
IP and IK rating
IP54
RCD
AC30mA+dc6mA
Input line
Surge protection,OVP/UVP,ground fault protection, Anti-error wire connection protection, Wire terminal temperature detection
Output line
CP fault,MCU fault detection,OCP/OTP/,Residual current protection, PEN(optional),Relay welding detection
Safety standards
IEC61851,IEC62196,IEC61000-6,IEC62955
Certification
CE,UKCA Pending
