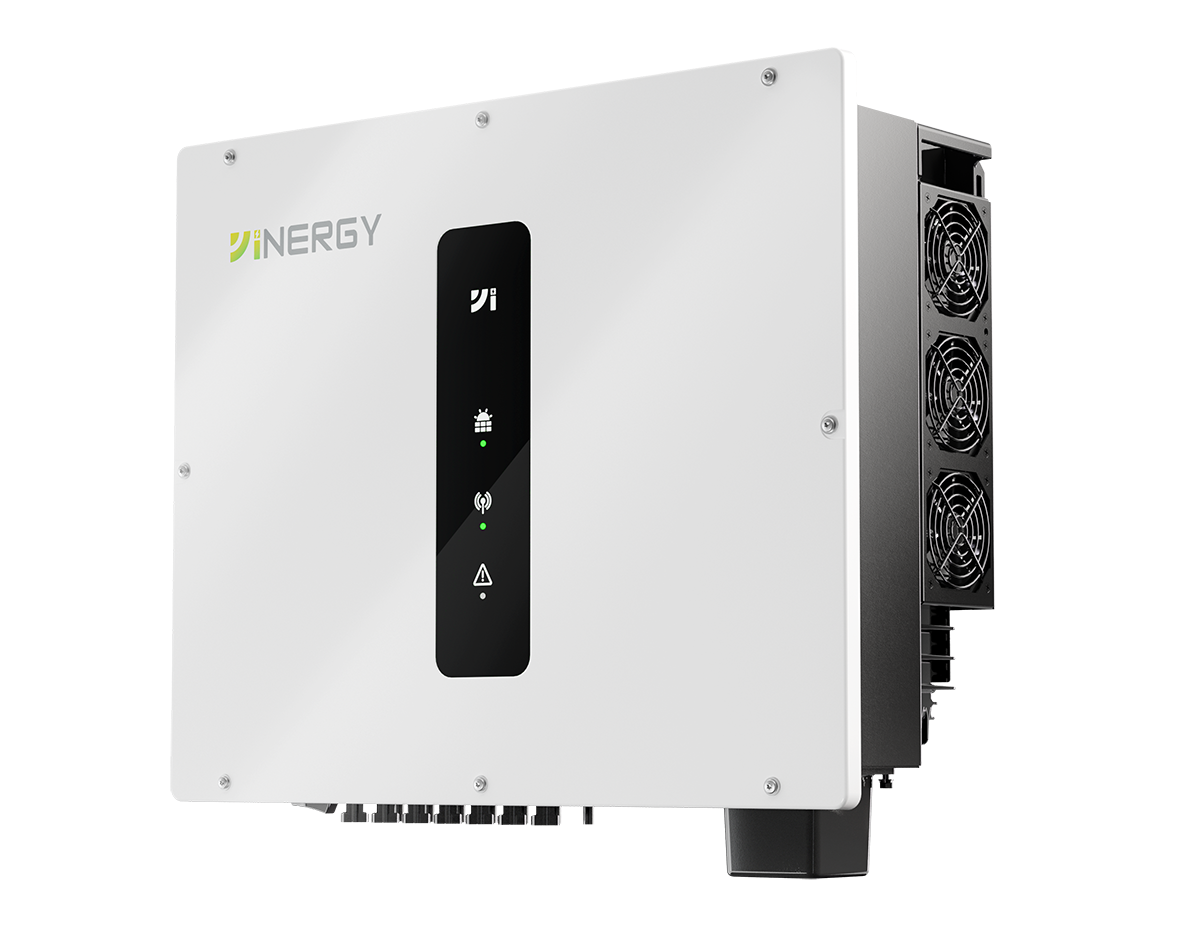

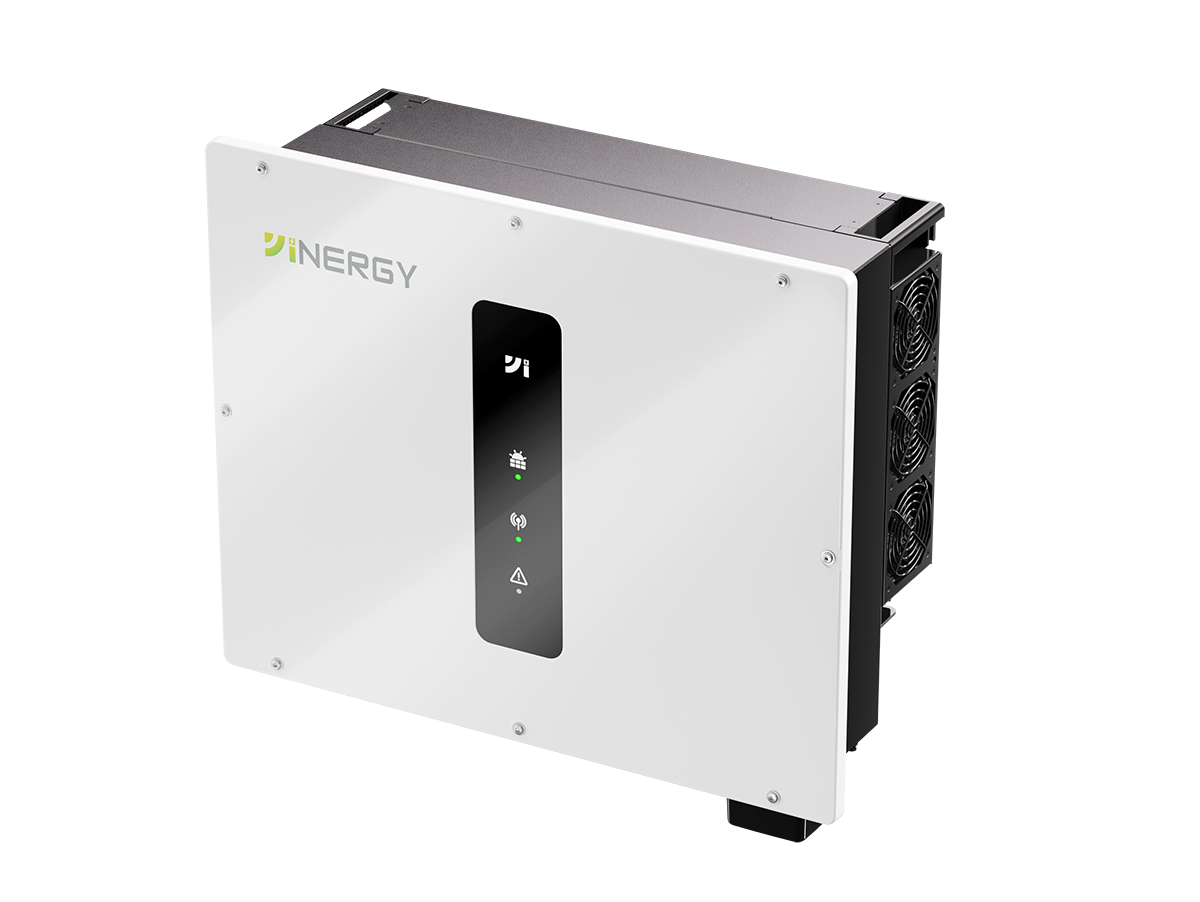

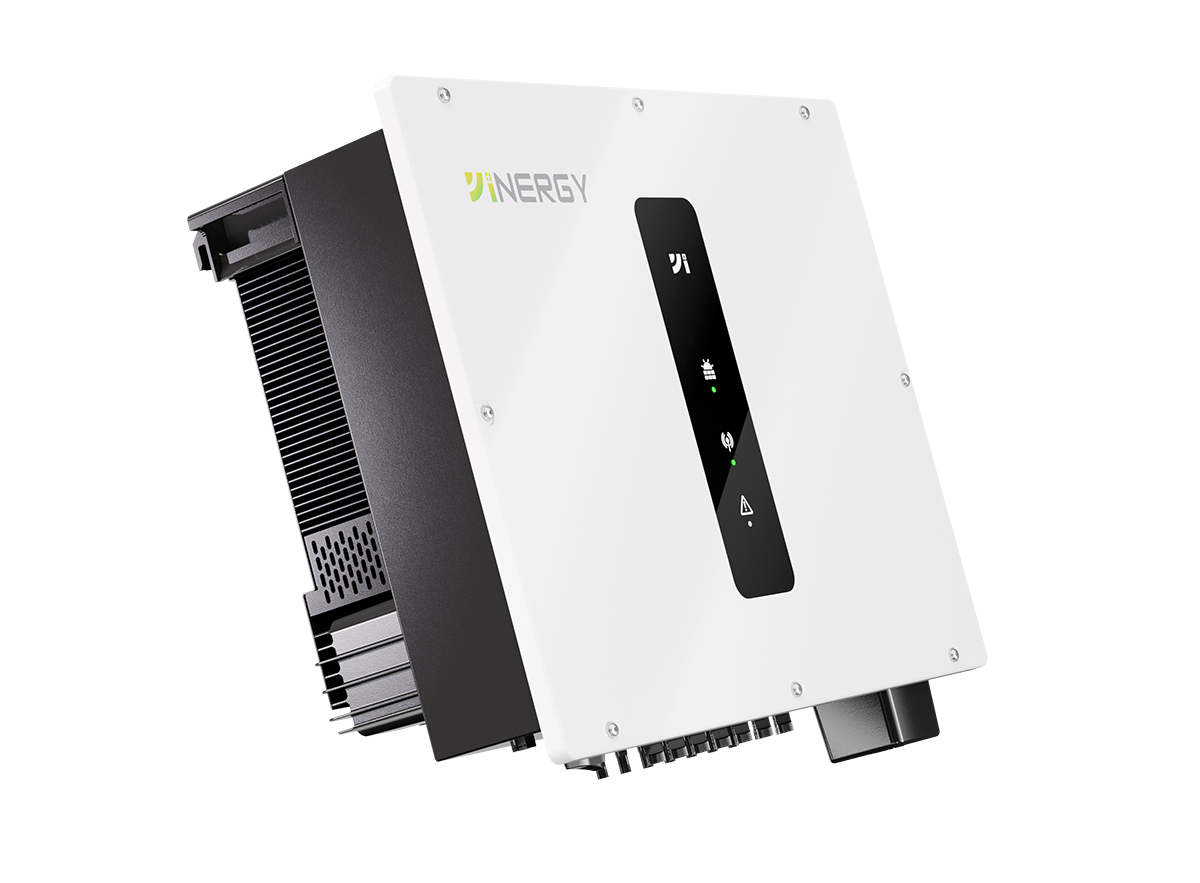

String Inverter-Yinergy

Faster Return on Investment

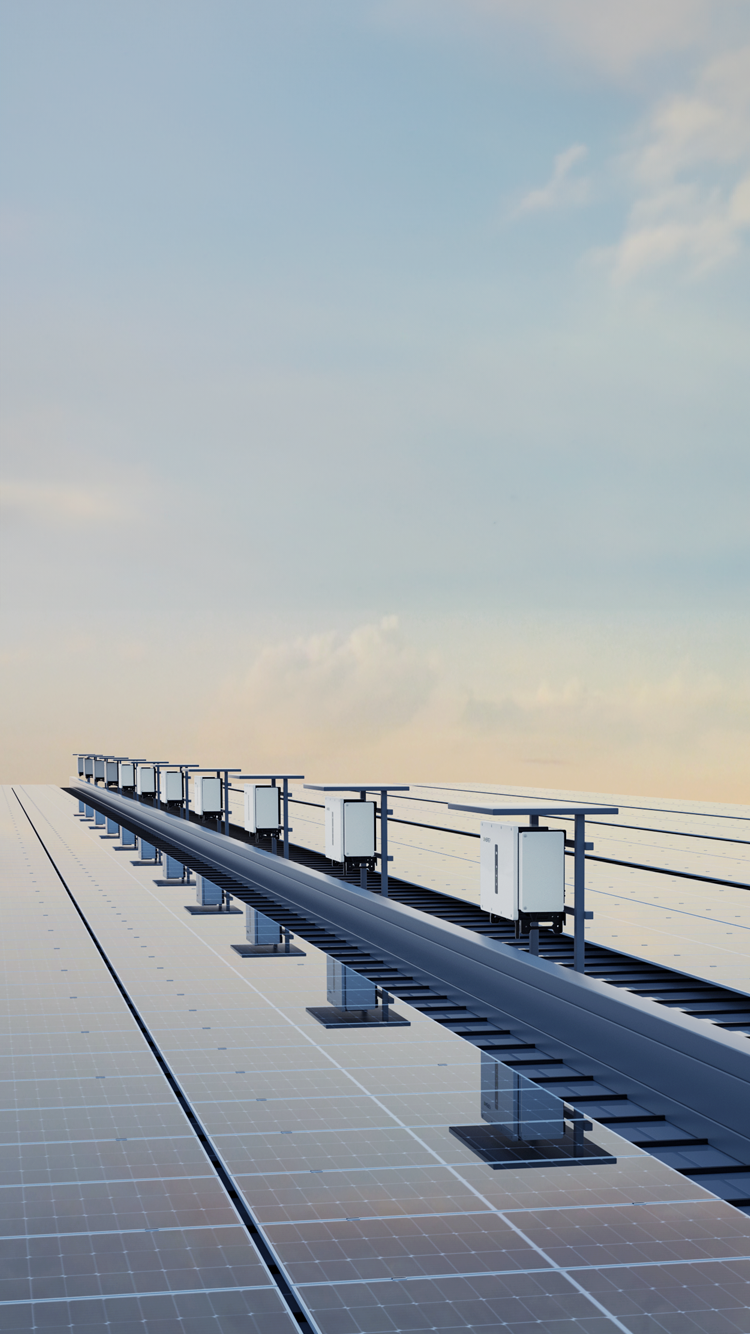

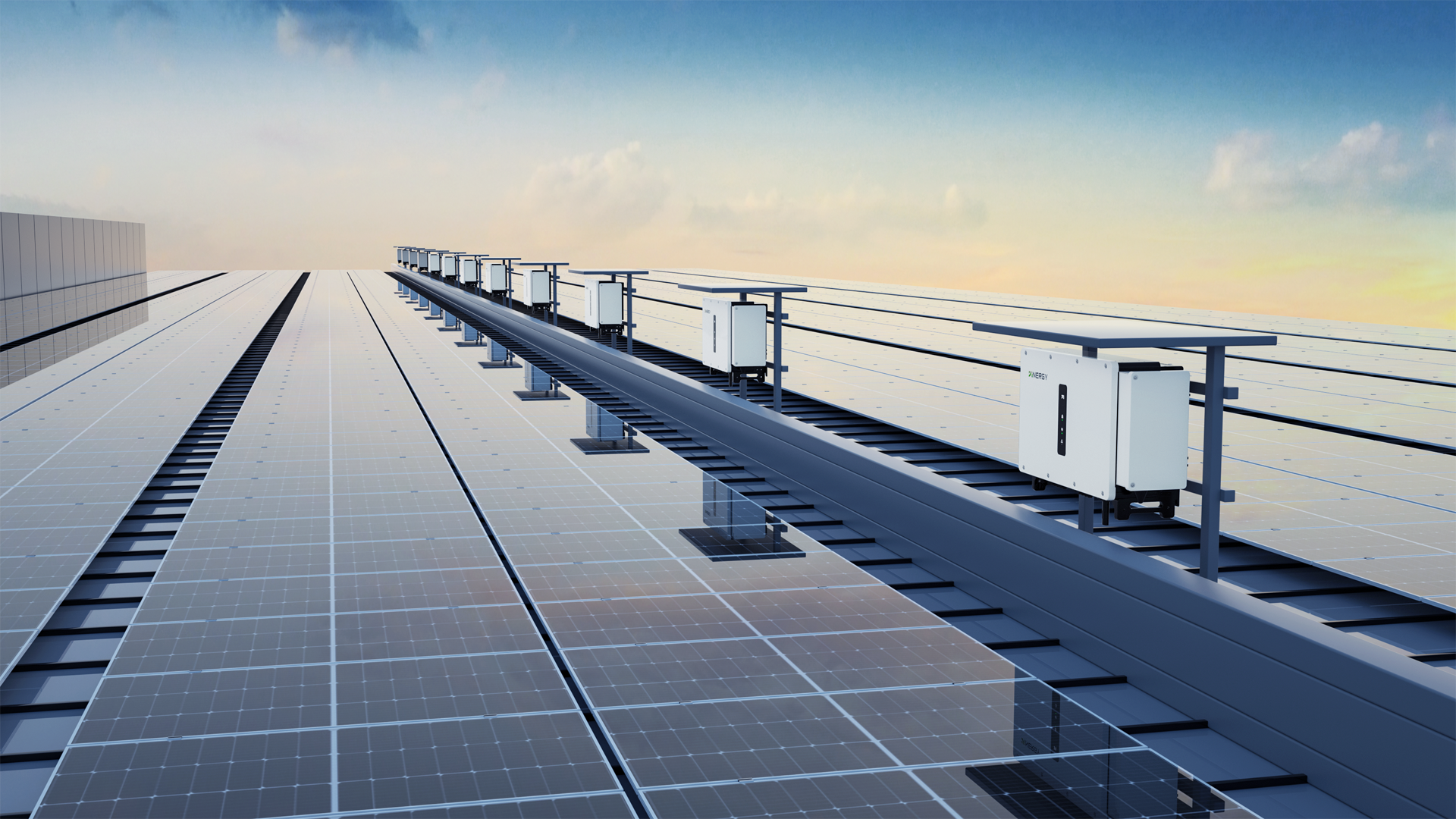

Experience the extraordinary power of Yinergy solar inverter, delivering outstanding energy performance with its wide MPPT voltage range, which enhances power yield. Rest assured with IP66, Arc-fault circuit interrupter. SI3P series inverter is suitable for medium and large-scale commercial rooftops or ground-mounted solar PV systems where maximum versatility and profitability are important. With its compact design and power boost function, it can provide an extremely high efficiency thus offering a faster return on investment.

PID Function

Built-in PID recovery function
Support P / N-type modules

45%

Full load running
Long term overload

Advantages

Large Module

Max. 20 A current input, compatible with bifacial module

Easy Array Design

Up to 4 MPPT´s for flexible PV array design

Smart IV Curve Diagnosis

Optimizing generation in shade

Weak grid optimization

Stable grid connection,Full load running at 45%, long term overload

AI Driven AFCI

Support AFCI, stay away from fire risk

Modular Design

Modular cooling system, easy to maintain

Simple O&M

Intelligent O&M, string-level Management

Parameters

SI3P

String Inverter

SI-3P50K-L-Y1

SI-3P40K-L-Y1

SI-3P36K-L-Y1

Max. Input Voltage

1100 V

MPPT Voltage Range / Rated Input Voltage

200 V - 1000 V / 630 V

Start -up Voltage

160 V / 200 V

Max. MPPT Input Current

40 A / 40 A / 20 A / 32 A

Max. MPPT Short Circuit Current

50 A / 50 A / 25 A / 40 A

No. of MPPT / No. of String per MPPT

4 （2 / 2 / 1 / 2）

Rated Output Power

50 kW

Max. Output Apparent Power

55 kVA

Rated Output Voltage

220 V / 380 V；230 V / 400 V

Max. Efficiency

98.7%

Dimensions (W x H x D)

574 * 513.5 * 234.5 mm

Weight

30.5 kg

Max. Input Voltage

1100 V

MPPT Voltage Range / Rated Input Voltage

180 V - 1000 V / 630 V

Start -Up Voltage

160 V / 200 V

Max. MPPT Input Current

40 A / 32 A / 20 A / 20 A

Max. MPPT Short Circuit Current

50 A / 40 A / 25 A / 25 A

No. of MPPT / No. of String per MPPT

4 （2 / 2 / 1 / 1）

Rated Output Power

40 kW

Max. Output Apparent Power

44 kVA

Rated Output Voltage

220 V / 380 V；230 V / 400 V

Max. Efficiency

98.7%

Dimensions (W x H x D)

29.5 kg

Max. Input Voltage

1100 V

MPPT Voltage Range / Rated Input Voltage

180 V - 1000 V / 630 V

Start -Up Voltage

160 V / 200 V

Max. MPPT Input Current

40 A / 32 A / 20 A / 20 A

Max. MPPT Short Circuit Current

50 A / 40 A / 25 A / 25 A

No. of MPPT / No. of String per MPPT

4 （2 / 2 / 1 / 1）

Rated Output Power

36 kW

Max. Output Apparent Power

39.6 kVA

Rated Output Voltage

220 V / 380 V；230 V / 400 V

Max. Efficiency

98.7%

Dimensions (W x H x D)

574 * 513.5 * 234.5 mm

Weight

29.5 kg
